Lilliput Q28 - 28 inch 12G-SDI professional production studio monitor

Tình trạng: Còn hàng
Mã sản phẩm: FLQ81
Hãng sản xuất: Lilliput
Loại: Monitor
Mua ngay

Model No.: Q28

Display: 28 inch, 3840 X 2160, 300nits

Input: 12G-SDI*2, 3G-SDI*2, HDMI 2.0, GPI, RS422, LAN, USB,SFP

Output: 12G-SDI*2, 3G-SDI*2, HDMI 2.0, RS422, Earphone jack

Remote Control: RS422 ,GPI , LAN

Feature: Quad View, 3D-LUT, HDR,Gammas,Remote Control ,Audio vector ,Camera Auxiliary Functions.

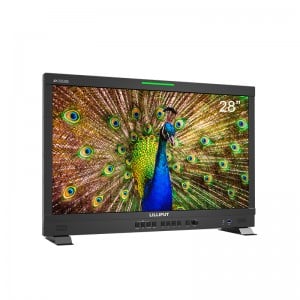

28 inch 12G-SDI production monitor
broadcast production monitor
broadcast production monitor

Color Temperature

According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.


Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bitswould be left to describe the dark tones where the camera is relatively less sensitive.

broadcast production monitor
Quad View monitor
production studio monitor

Audio Vector (Lissajous)

The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

production studio monitor
production studio monitor


When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.

production studio monitor


3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.




Supports loading the .cube file via USB flash disk.

broadcast production monitor
