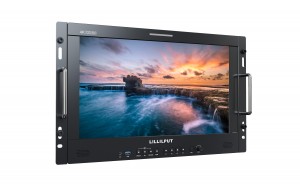

Lilliput Q18 is a professional production studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording.It also support remote control via RS422, GPI, LAN port .

• Model No.:Q18
• Display:17.3 inch, 3840 X 2160, 400nits
• Input:12G-SDI, 12-SFP,HDMI 2.0
• Output:12G-SDI,HDMI 2.0
• Remote Control:RS422 ,GPI , LAN

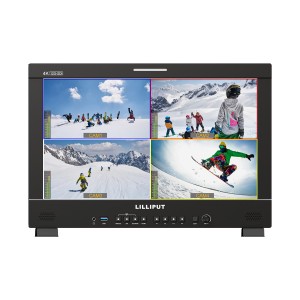

• Feature:Quad View, 3D-LUT, HDR,Gammas,Remote Control ,Audio vector ,Camera Auxiliary Functions.

Audio Vector (Lissajous)

The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.
