Màn Hình PortKkeys BM5 III WR - 5.5'' HDMI/SDI Touchscreen Monitor

Màn Hình Portkeys BM5 III WR - 5.5'' HDMI/SDI Touchscreen Monitor

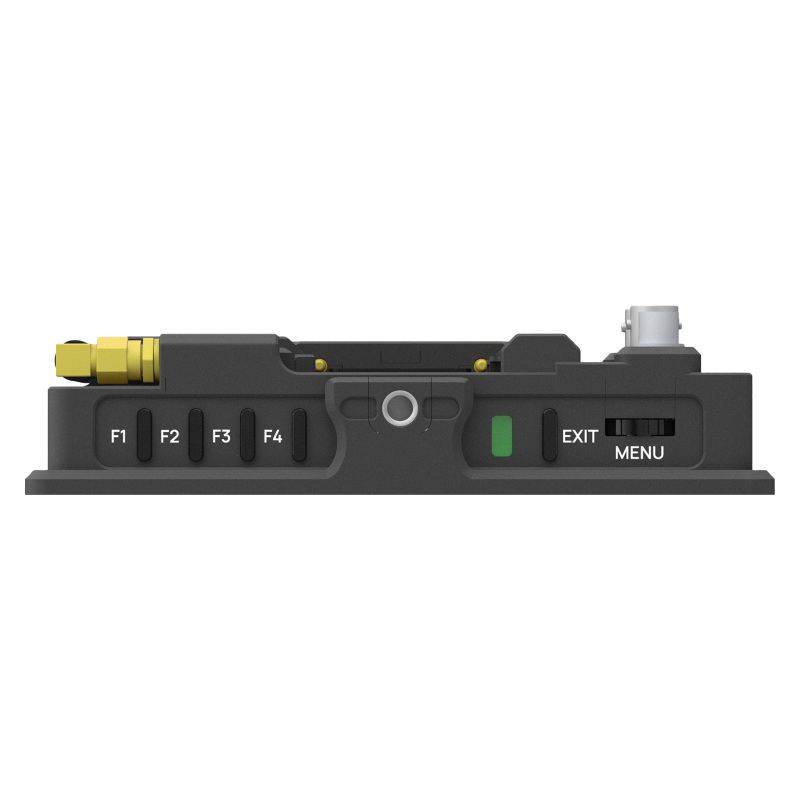

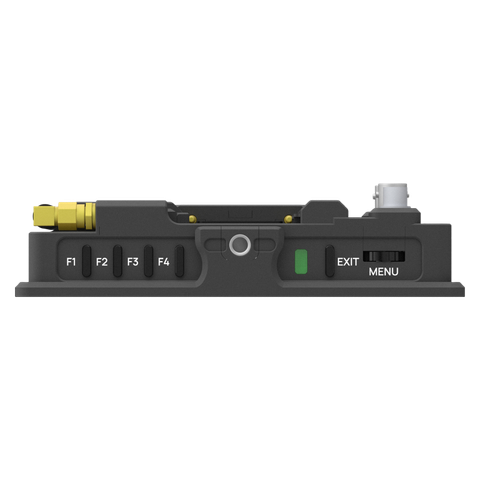

Portkeys BM5 III WR - 5.5'' HDMI is a robust 5.5-inch on-camera monitor ready for all your next creative adventures thanks to its compact form factor, daylight-viewable touchscreen, four user function buttons, a full suite of professional monitoring tools, and the capability to control your camera.

Portkeys BM5 III WR - 5.5'' HDMI is entirely made of rugged aluminum housing and has toughened glass in front of the display. However, with a weight of only 376g/13.2oz (without battery), it won’t add much poundage to your camera rig.

With a high brightness of 2,200 nits, shooting in full sunlight has never been easier. Each BM5 III WR WLED display is factory color-calibrated and passes strict hardware controls to ensure the most accurate colors. In addition, the 10-bit (8+2 FRC) panel makes color reproduction more accurate with a rich level of color details and no color banding. This 5.5-inch monitor has a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1000:1 contrast ratio.

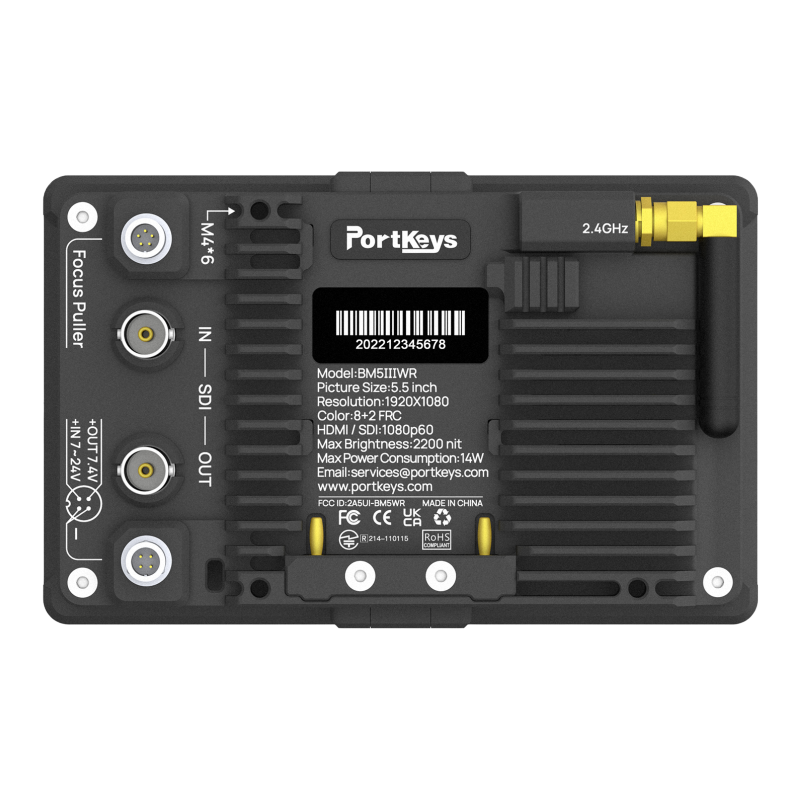

When it comes to power, with a low power draw of only 14W despite the highly bright 2,200 nits display, the built-in Sony NP-F-style battery plate at the back of the Portkeys BM5 III WR can power it for hours.

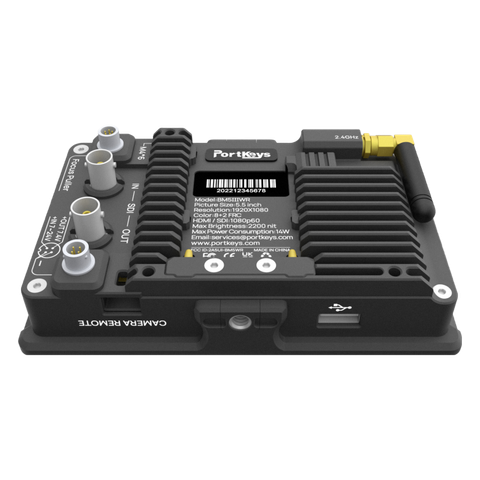

Furthermore, if you use an external battery to power your camera rig, the 4-pin aviation 7.4V-24V power input and the included D-Tap to 4-pin aviation cables (40cm and 100cm) can power your monitor infinitely. The 4-pin aviation 7.4V power output can also power small camera accessories, such as a wireless follow focus motor.

Portkeys BM5 III WR - 5.5'' HDMI is a future-proof monitor with SDI and HDMI video inputs. Also, the SDI video output with HDMI cross-conversion ensures perfect video continuity no matter where the monitor is placed in the video signal chain. The SDI Output can output a clean video feed, but you can also output a 3D LUT and peaking if needed.

Despite its compact form factor, the BM5 III WR is packed with all the monitoring features you can expect from a professional on-camera monitor, including:

• A high-precision Waveform that can be displayed full-screen. Waveform SDI output is also possible. Histogram and Zebra tools are also available.
• 3D LUT monitoring and 3D LUT SDI output. You can load custom LUTs via the USB port at the bottom of the monitor and the included USB key.
• ARRI False Color mode and user-defined mode. When you use the user-defined mode, you can freely set the IRE values.
• A new Peaking algorithm to help you nail focus easily. A Zooming feature is also available.
• Framing guides, grids, aspects.
• Image Capture and Image Overlay. Image Capture takes a snapshot of the HDMI or SDI video input (combined with a LUT if desired) and saves it to the monitor’s memory. Then, you can set the transparency/opacity of the Image Overlay. This feature is helpful for shot matching (continuity) or a quick overview of the day’s shots.
• Anamorphic image de-squeeze.
• Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.

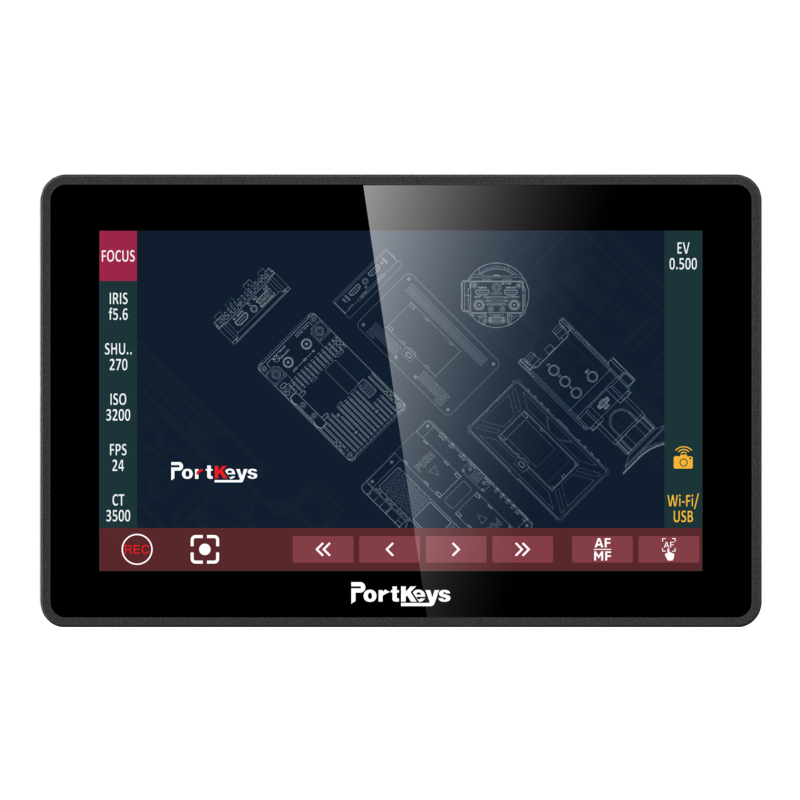

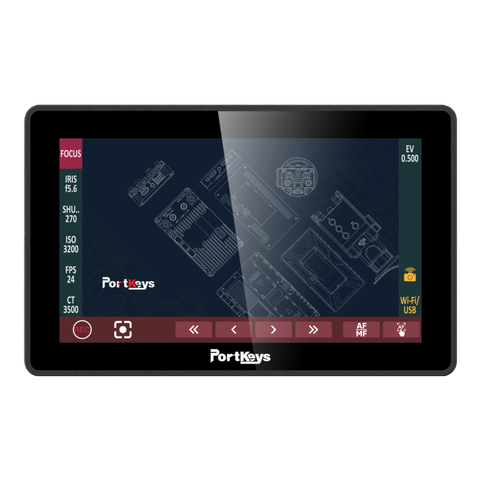

On top of all the professional monitoring features, the Portkeys BM5 III WR is also capable of controlling wired/wirelessly many cameras:

•  The 2.4 GHz WiFi antenna at the back of the monitor can connect wirelessly to the RED Komodo/V-RAPTOR. Since the BM5 III WR is RED Approved, you can change your camera settings directly from the monitor and even touch to focus.
• The WiFi connection and camera control functions are also compatible with multiple Sony cameras, including the Sony A7S III, A7M IV, A7M III, A1, A9I, A9II, A7C, FX3, RX10, RX0.
• The monitor supports Bluetooth connection and camera control for Blackmagic Design users with the BMPCC 4K, 6K, and 6K Pro.
• Wired control is also available for multiple Sony, Canon, Panasonic, BMD, and ZCAM E2 cameras.
• If you use a TILTA Nucleus N/M wireless follow focus, the BM5 III WR supports wired control of your motors. The focus scale can even be displayed on the display.

* Wireless control does not mean wireless video transmission; the video signal cable still needs to be connected.
