Màn Hình Portkeys MT22DS 21.5'' PBP Dual Screen
Portkeys MT22DS Dual Screen 21.5″ Production Monitor
Two screens can load the same 3D LUT file, support dual horizontal/dual vertical/left horizontal and right vertical/left vertical and right horizontal/ left horizontal and right vertical cropping of the same source
Note: Left and right screens can be flipped individually and mirrored
Custom JPG Picture Freeze Frame
After capturing an image, it can be compared with real-time video by semi-transparent image superposition
Note: Must be a 16:9 1920×1080 jpg image
Wireless Video Transmission Power Supply Plate
Supports NPF battery wireless video transmissio and V-port battery wireless video transmissio with 90°/180°/270° adjustment
CNC Aluminum Alloy All-metal Shell
With fast heat dissipation and high durability
3D LUT HDMI Output
HDMI, 3G-SDI can output video after loading 3D LUT
Anamorphic Lens Calibration
Supported Ratio: 1.00X/1.33X/1.42X/1.50X/1.60X/1.66X/1.85X/2.00X/2.35X
User-defined adjustment range: 0.25X-4.00X
HDMI to SDI Output
Built-in signal conversion, no external signal conversion box required
48V Phantom Audio Embedded SDI Output
Standard 4-pole XLR connector
Brightness and RGB Signal Detection Before/After Loading 3D LUT
Loading 3D LUTs for better picture quality and more intuitive monitoring
Customized Peaking Range(Peaking Frame)
Peaking perfectly avoids rendering camera parameters
Custom Rectangular Image Crop
Easily and clearly monitor the details of your images
Factory Color Calibration-709 colour gamut with X-Rite 1D hardware
More accurate color calibration and more intuitive image monitoring
Key features:
- 21.5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight viewable with a maximum brightness of 1,000nits.
- Factory color-calibrated: 100% coverage of Rec.709.

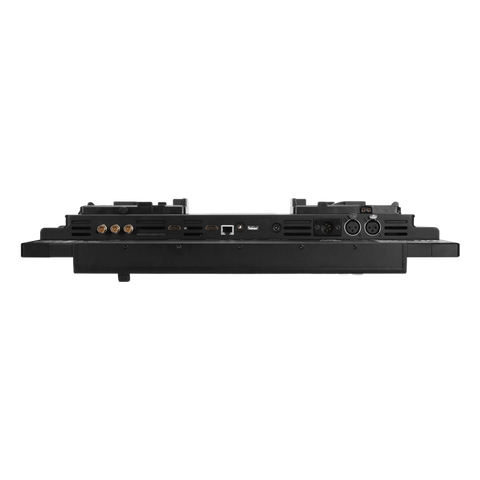

- 2 x 3G-SDI input, 1 x GPI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion from every direction.

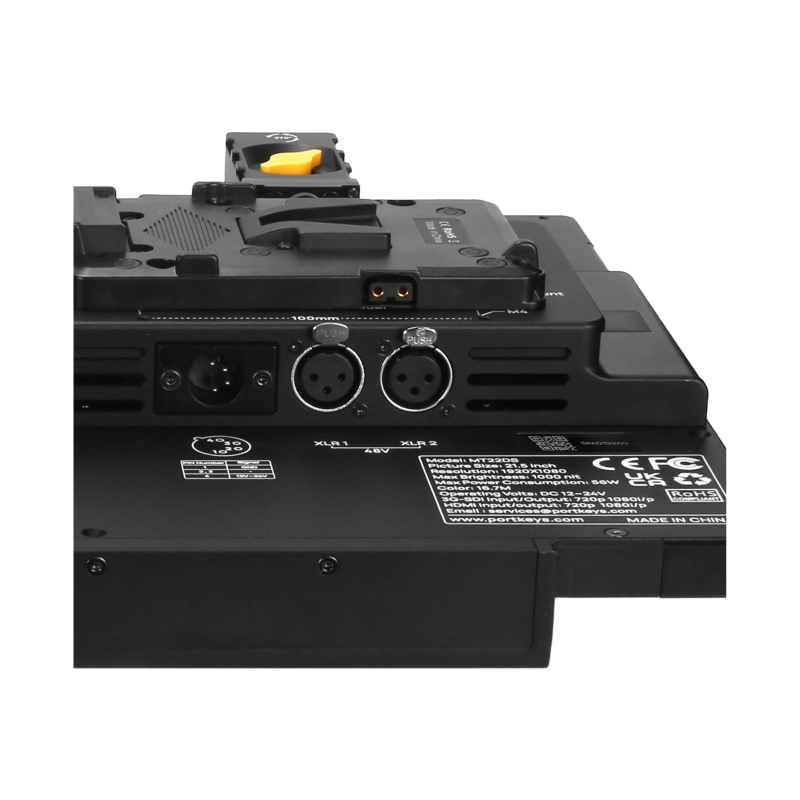

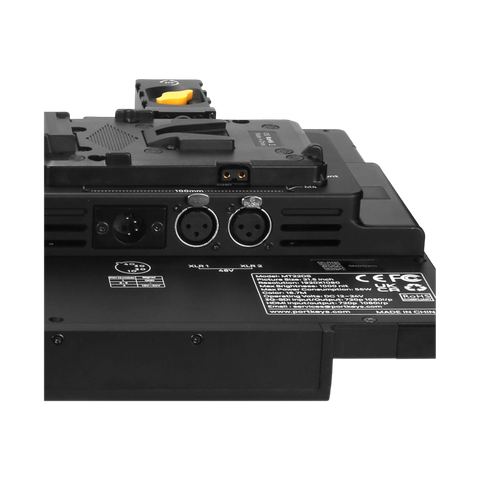

- Two XLR audio outputs with 48V phantom power.

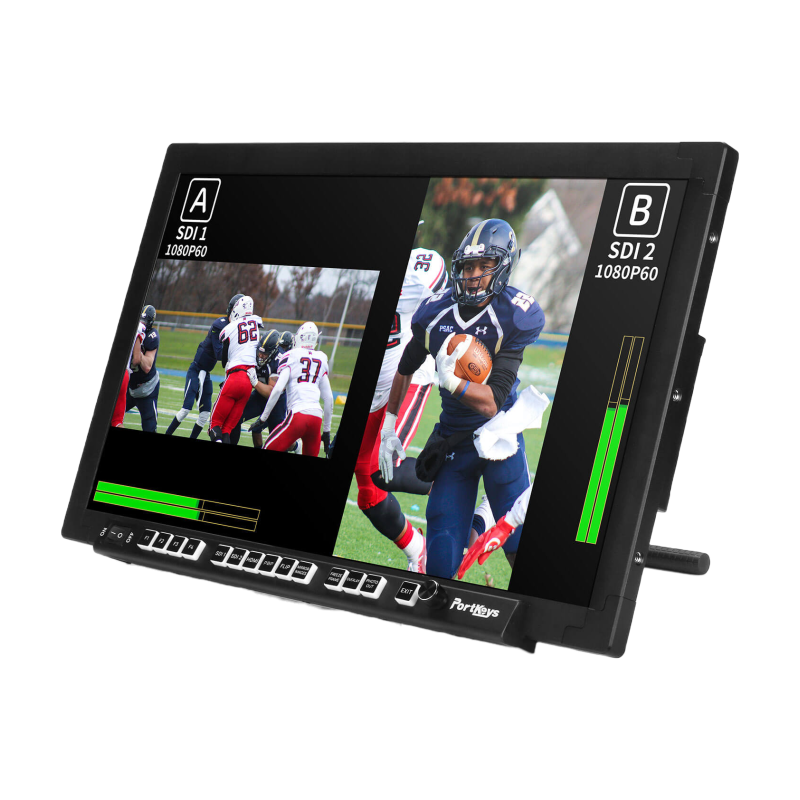

- Split screen monitoring, you can monitor two video inputs simultaneously.
- Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT SDI output capabilities.
- Multiple function buttons for easy access to your favorite monitoring tools.

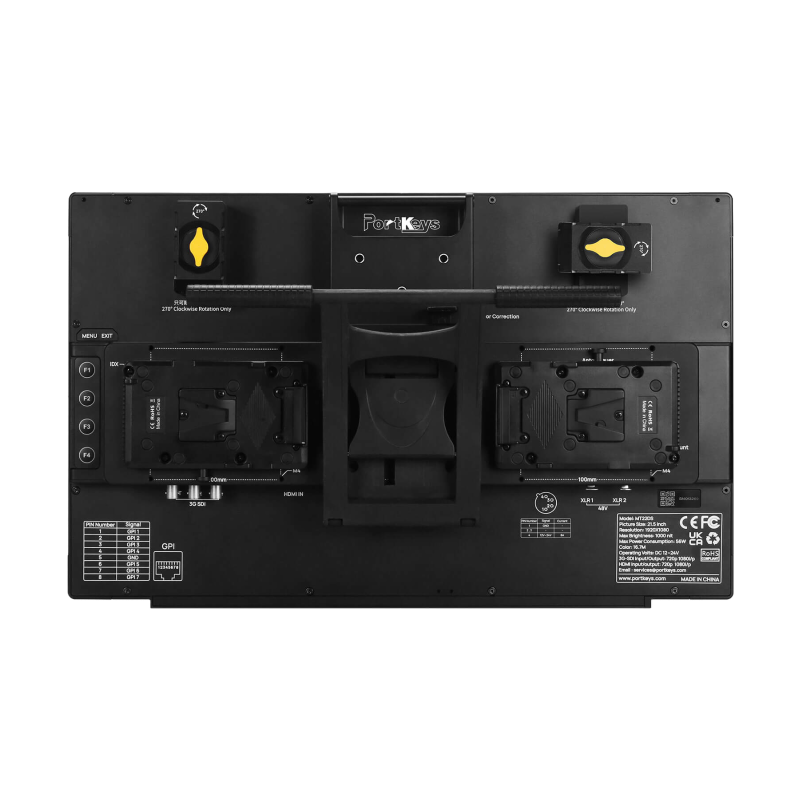

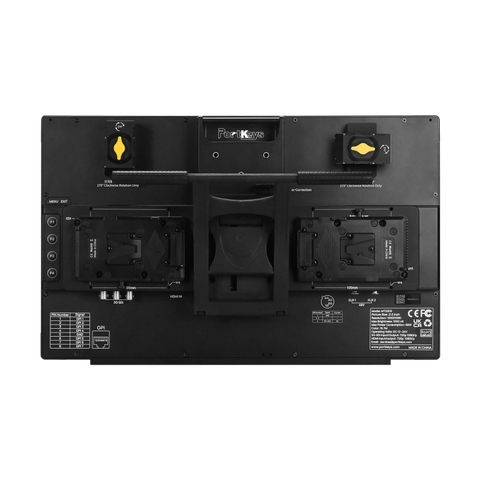

- V-Mount / Gold Mount battery plate. 4-pin XLR 12-24V power input.
- Built-in Sony NP-F battery plates with pass-through power to power wireless video receivers.
- VESA mounting points at the back of the monitor.
- Built-in carrying handle and comes with a removable table stand.
- Rugged all-aluminum housing with 1/4″-20 mounting points on the sides.
